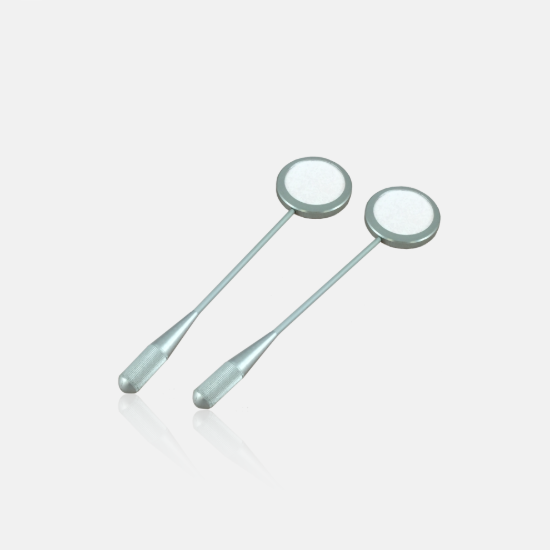

UV-NIR Laser beam visualizers

Detects wavelenghts from UV to NIR Works with CW and pulsed laser light Requires no charging High sensitivity to laser radiation – 0.1 mW/mm2 Damage threshold for pulsed laser – 1J/cm2, 10ns

1,390.000 (CNY)

Qty:

Description

Laser beam visualizers are designed to detect UV and IR both CW and pulsed laser light radiation.
These visualizers are fabricated from aluminum with a organic polycrystal photosensitive region, which enables easy location of UV-VIS-NIR light beams and focal points. As it is not necessary to charge the active region both CW and pulsed laser light will be detected even in darkened room conditions.

Technical information

Product code	IRV-R-1	IRV-G-1
Threshold sensitivity W/cm2, (mW/mm2)	0.01 (0.1)	0.02 (0.2)
Spectral range, nm	190-1090 + 1470-1600	880 – 1070
Emission	Red	Green
Active sides	one
Laser beam size, Ø mm	35
