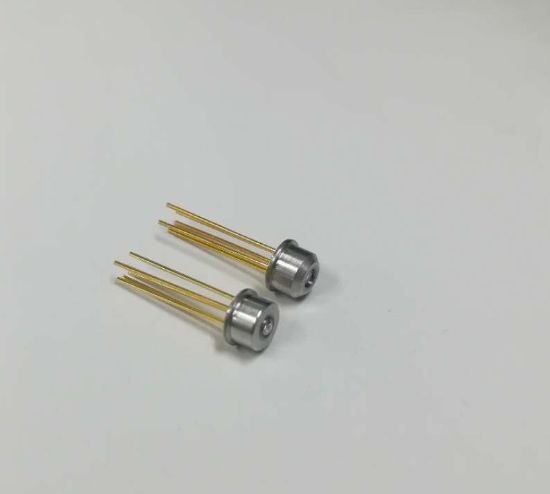

10Gbps InGaAs PIN-TIA TO-CAN
Features: ·InGaAs PIN with trans-impedance amplifier(TIA) ·High sensitivity ·Wide temperature range from-40℃ to +85℃ ·Suitable for 10G high speed applications
Features:
·InGaAs PIN with trans-impedance amplifier(TIA)
·High sensitivity
·Wide temperature range from-40℃ to +85℃
·Suitable for 10G high speed applications
Product Specifications:
Absolute Maximum Ratings(T=25℃)
Parameter | Symbol | Unit | Min | Max | Note |
Operating Temperature | TOP | ℃ | -40 | 85 | |
Storage Temperature | Tsyg | ℃ | -40 | 85 | |
Solder Reflow Temperature | Tsld | ℃ | | 260 | 10 seconds max |
Power Supply Voltage | VP | V | 0 | 4 | |
Optical Power | Pin | dBm | | 3 | |
